Smooth and perforated bobbins

Mainly manufactured in original polypropylene, our wide range of bobbins is designed to minimise vibration on the machines and to improve production performance. We have plastic bobbins for the following uses:

Open End Winding Dyeing Doubling

Textured Twisting Other applications

The "one way" or single-use bobbins are lighter and can be smooth or perforated. In both cases they are adapted to work with state-of-the-art machinery.

The reusable smooth tubes designed for internal use, within the same process of the customer, can often be recovered due to their high impact resistance and long life.

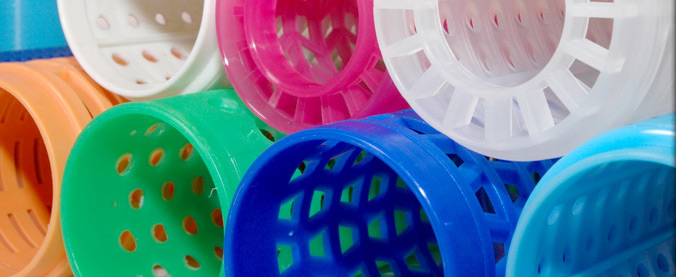

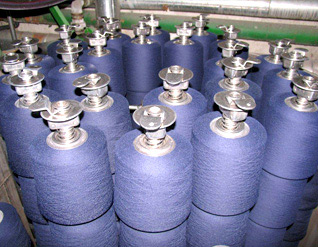

Our perforated bobbins which fit together are developed to achieve the best result in dyeing processes with the maximum ease of use. We assure a good quality of dyeing, increasing the productivity of the process, minimising possible errors when handling the bobbins, while managing to optimise production costs at the same time.

The bobbins are manufactured in original polypropylene and with different thicknesses. Depending on our customers’ requirements, we can add mineral filler to enable higher temperature resistance and longer life, allowing the bobbins to be reused.

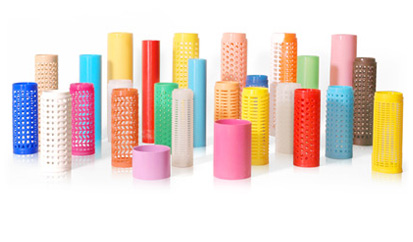

The following table outlines our range of plastic bobbins by size. For each measurement we have perforated and smooth tubes with different densities, covering all customer needs.

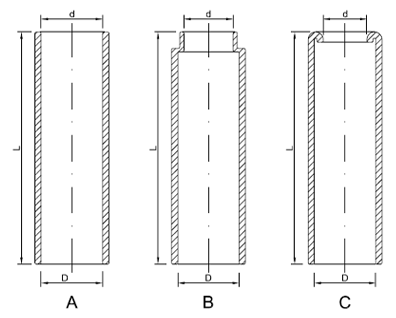

Technical specifications of the bobbins:

L	D	d	Tipo *
133	55		A - L
170	54		A - L - O
170	54	42	B - C - L - O
170	56		A - O
170	56	44	A - B - L - O
170	59	54	B - L - O
170	59	33	B - O
170	68		A - O
172	40	37	B - O
174	54		A - O
175	41	35	B - O
175	56	44	C - L
177	59	54	B - O
177	59	33	B - O
196	43		A - L
197	44	37	C - L
225	43		A - L
230	56		A - L - O
230	56	45	B - C - L - O
230	67		A - L
230	67	57	C - L
230	69	53	C - L
230	74		A - L
230	84		A - L
265	56	44	B - O
270	43		A - L
280	56		A - L
285	63	37	B - O
285	67		A - L
288	69		A - L - O
288	69	57	B - C - L - O
290	73		A - L

*
L: Smooth
O: Perforated
